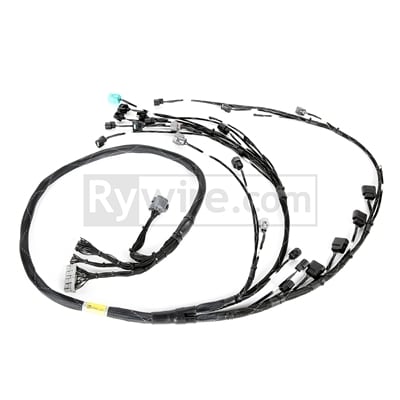

Budget Tucked K-Series harness Ver. 2 (K24)
Budget Tucked K-Series harness Ver. 2 (K24)

Alternative Views:


This Harness differs from our K2-Base harness, with the following features...
-K24 style (grey connector) Crank Shaft (CKP) sensor.
-K24 style (small style) Knock sensor (KS)
PRICE: $674.00



ID: K24-BASE


TRANSMISSION TYPE*:


CHARGE HARNESS*:


Add VTEC Oil Press. Solenoid Bolt:


Description

Version 2 of the Rywire K-series engine harness was created to facilitate a more universal chassis, and harness routing preference. This style can be routed more like the OEM k-series engine harness through the center or more to the right on the firewall than it's Version 1 counterpart. This routing method is ideal for our (RHD) Right Hand Drive customers however NOT exclusive to RHD chassis and does work fine on a LHD chassis. Version 2 is also routed in a way that allows you to get around aggressive headers.

These harnesses are warrantied and guaranteed to work, we provide excellent installation phone support and troubleshooting to ensure this reputation for quality, however they are non-refundable. Our Budget K-series Version 2 (K2) wire-tuck engine harness is nearly identical to its K2 Mil-spec counterpart with the primary differences being the type of wire used, the single black wire color and expandable loom used. All connectors and materials are new. Each connector is crimped with pneumatic heads to ensure an OEM crimp every time, then tagged with a white identification label for easy installation. All heavy interference circuits are protected and grounded with proper wire covering. Our engine harnesses are 100% quality tested pin to pin; And resistance checked to ensure no voltage fluctuations. These are the best harnesses money can buy. NO CORE is necessary when buying a harness from us! This harness follows an OEM style configuration meaning that you'll still need a interior computer plug adapter for your chassis - see the K-Series Computer Adapter link and add-option below!

HARNESS CONNECTOR LIST:
VTEC solenoid
VTC
Oil pressure sending unit
Crank Sensor (CKP)(02-04 K24 style)
Coils 1-4
Cam (CPS) Exhaust Side
Top Dead Center sensor (TDC) Intake Side
Engine Coolant Temp (ECT) (02-04 K20 style)
Knock Sensor (KS)(02-04 K24 style)
Intake Air Temperature (IAT)
Alternator (02-04 K20 style)
Manifold Air Pressure (MAP)
Throttle Position Sensor (TPS)
Idle control motor
Electronic speed sensor (VSS)
Injectors 1-4
h20 sending unit (for gauge cluster)
Reverse Lights
Reverse Lockout solenoid
Starter signal
Computer plugs A and B
Power distribution cap
Ground
2 Extra Wires

Options: K-series Computer Adapter: The Mil-spec engine harness still needs to be adapted to the specific chassis with the E-plug added. Our K-series adapters are $329.99 and can be viewed here. (click to view)

Charge Harness: The "One Piece charge harness" option will add the Starter and Alternator wires (+$40)

VTEC Pressure Switch Plug (Plug Bolt)

Rywire Engine Ground kit with DR-25
FEATURES
  • This Harness differs from our K2-Base harness, with the following features...
    -K24 style (grey connector) Crank Shaft (CKP) sensor.
    -K24 style (small style) Knock sensor (KS)
