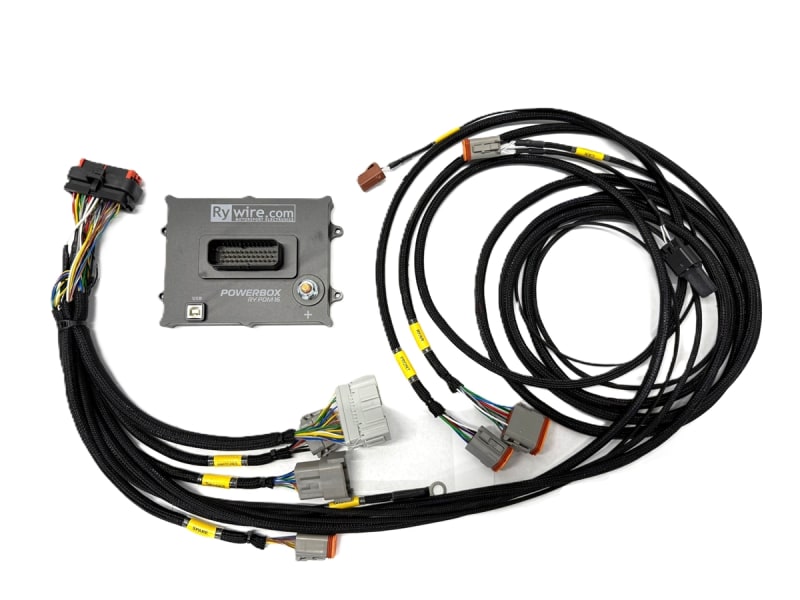

This is the perfect solution for all your chassis harness needs. Wire up any vehicle quickly and easily. Our state of the art system includes:
1) Power Distribution Unit. Our solid state fuse-less system is a fully configurable 16 output systems. Pre-loaded base map calibration will get you started.
2) Chassis Wiring Harness. Utilizing Deutsch and AMP connector systems.
3) Optional Front Harness. Plug and play Head lights, Indicators, Fans. ($100 extra when ordered with system) If un-selected, system will come with color coded flying lead wiring.
4) Optional Rear Harness. Plug and play Tail lights, Indicators, Fuel level, Fuel pump. ($100 extra when ordered with system) If un-selected, system will come with color coded flying lead wiring.
5) Optional Gauge/Cluster Harness. Plug and play Gauge cluster harness. ($100 extra when ordered with system) If un-selected, system will come with color coded flying lead wiring.
6) Brake lamp wiring. Pre-terminated for 2 wire pedal mounted brake lamp switch.
7) Optional Switch Panel. 6 Toggle switch system with mounting plate. ($150 extra when ordered with system). Ignition Switch, Start Button, Fuel Override, Fan Override, Headlights, Indicator Switches.
8) Optional CAN Keypad. 12 button CAN open keypad with LED.
9) Optional Circuit Breaker Works excellent for a master kill, or "Storage Switch" when not driving the vehicle. Install between PDM power stud and battery source.
10) Keypad Label Sheet Keypad labels for the Greyhill Keypad.
11) Wiring installation instruction pin-out with color and wiring schematic.
Pre-configured on this system is the following (Outputs can be re-assigned by user).
OUTPUTS (25amp):-Starter
-Coils
-Fuel Pump1 & Fuel Pump2 (2 outputs)
-Fan1 & Fan2 (2 outputs)
-Headlights / Taillights
-Engine computer
-Right Indicator
-Left Indicator
-Hi Beam Headlights
-Brake Lights
-Spare Front Output
-Spare Rear Output
-Spare AUX outputs X2
INPUTS (hi or low activation):
-Master switch
-Fan switch
-Starter switch
-Brake light switch
-Headlight switch
-Fuel pump switch
-Hi Beam Headlights or H20 pump switch
-Indicators switch (Right and Left)
-Spare inputs wire to AUX connector
Also on board - included wires for:-fuel level sender
-reverse lights
-fault indicator
-speed sensor
-charge warning
-computer malfunction indication lamp
-low oil warning lamp
-tachometer signal
-computer service check signal
-illumination lamps
-water gauge
-battery supply wire (to master disconnect)
-computer memory power
-ground
-CAN (hi and low) Keypad
PDM Specs:-16 25amp Outputs, 12 switched inputs
-200amp max
-52 CAN inputs
-PWM capible outputs
-programmable outputs with easy to use software
-on board data logging for total and individual current draw
-compact case size
-System weight 430grams
Harness specs:
-Harness is constructed with Tefzel wire
-Deutsch and AMP connectors for quality connections
-Easily expanded and adapted to fit different style chassis
-Made to plug into different Rywire engine harnesses, as well as used universally.
-Color coded wires make wiring into any chassis easy (plug and play options avaliable).
-Constructed with quality split sleeve wire loom allows you to re-direct circuits cleanly and easily.
-Pre-programmed and pre-assigned so no need to learn complicated logic.
Software Download - >
https://motorsportelectronic.com/product/hp8443/***This item may have a lead time. Please email for current expected time***Questions and Answers
Q: Is this for a street car?
A: Not really, this harness is a extremely stripped down system, not to be used with creature comforts found in a street driven, daily driver.
Q: Does this harness have AC
A: Easy answer is NO. There is no pre-wired circuits for AC.
Q: Can this harness run my power windows?
A: It can POWER your power windows, but it is not pre-wired for them. We recommend running the power windows to a fused constant power source and keeping them off the Rywire harness.
Q: Can this harness power another pump or device?
A: Yes, this harness has 16 outputs. For example, if you only need 1 Fan, or Fuel pump, you can for example borrow that channel to power what you need. The harness is loomed with a split braid for this reason, we assume the user will re-direct some circuits.
Q: Can this system integrate my cabin heater and controls.
A: Maybe, on a Honda Civic for example, we have used a spare output to supply power to the heater fan through the factory heater controls harness. Not all vehicles may be so easy to integrate, but certainly possible.
Q: Can wipers be controlled?
A: Yes we have had success controlling wiper systems using one of the spare outputs.
