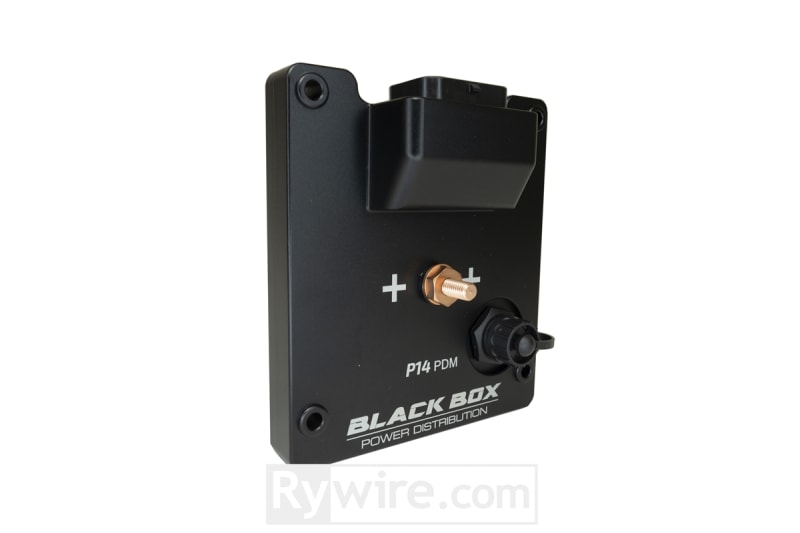

Moristech P14 PDM
Moristech P14 PDM



Alternative Views:
PRICE: $925.00


ID: MORISTECH-P14


Add Keypad Password:

Add 12 Button Keypad:

ADD COMMS CABLE:

Description


Software Download - > https://moristech.com.au/pages/pcm-software

Flyer https://cdn.shopify.com/s/files/1/0589/2817/files/P14_flyer_v1_2.pdf?v=1597457003


Features:14 high side output channels. 6 x 22 Amp and 8 x 10 Amp continuous outputs.

130 Amp maximum total current recommended.

10 Switch Inputs.

Compatible with 24 volt systems.

Programmable functions including True, False, AND, OR, Flash, Pulse Train, PWM ramp,Toggle and Set/Reset to control such things as Turning Indicators, Hazard and Emergency lights.

2 x PWM capable outputs (1 x 22 Amp and 1 x 10 Amp)
This instruction is a wiring diagram for the Moristech PDM 14 Unit.

[ RIGHT CLICK AND "SAVE AS" TO SAVE PDF FILE ]
Programming and setup.
