Honda K-Series Infinity 506/508 (6/8h) Mil-spec Engine Harness
Honda K-Series Infinity 506/508 (6/8h) Mil-spec Engine Harness

PRICE: $1,100.00


Vehicle Type:*:







Picture needs updating*

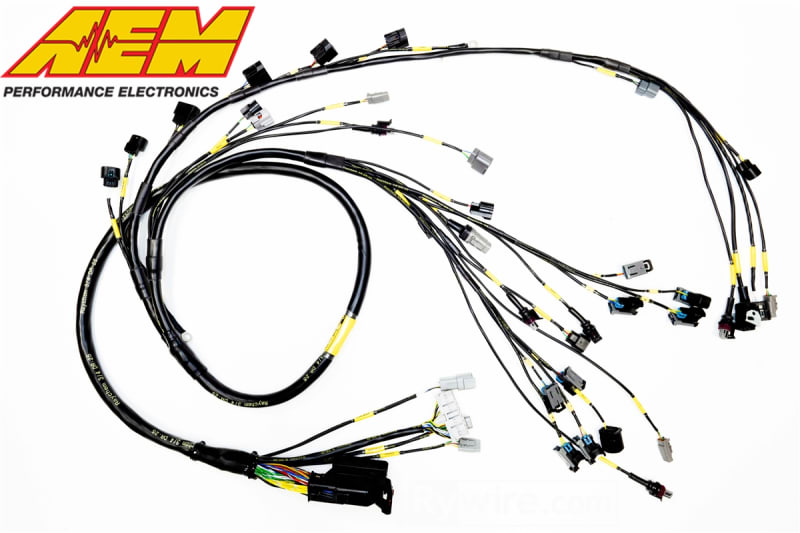

The Rywire AEM Infinity 506/508 (6/8h) harness is a universal, fully populated race loom that incorporates all the essential functionality of the fastest Front wheel drive Hondas of today!

If you are building a Front wheel (or awd) drive race car and need the data and flexibility of the top ecu on the market, then this is the harness for you. The AEM Infinity EMS offers some of the best functionality on the market today, and this harness packs a punch, allowing all the necessary terminations. We have worked with some of the fastest front wheel drive race cars in the world and got there feedback. The harness we are offering allows for plenty of expansion, and pre-terminated connectors exactly where you need them.

This wire harness can be used with front engine front wheel drive as well as rear engine rear wheel drive, and front engine rear wheel drive configurations. All wheel drive systems are also compatible.

Pre-terminated for:

ECU AEM Infinity 508 or Infinity 506 (AEM Part 30-7106 or 30-7108)

Lambda/ Uego Bosch 4.2LSU Wideband O2 sensor

AIR TEMP AEM (AEM Part 30-2014)

Coolant Temp (ECT) Factory Honda K20a

AEM (AEM Part 30-2013)

Fuel Pressure AEM (AEM Part 30-2130-100)

Oil Pressure AEM (AEM Part 30-2130-150)

Coolant Pressure AEM (AEM Part 30-2130-150)

Exhaust Backpressure (EMAP) AEM (AEM Part 30-2130-50 or 30-2130-75)

Manifold Pressure (MAP) AEM (AEM Part 30-2130-50 or 30-2130-75)

Throttle Position (TPS) Factory Honda K20a

VTEC Factory Honda K20a

Cam Control (VTC)
Factory Honda K20a

Speed Sensor (VSS Hydro) Factory Honda K20a

Reverse Lights Factory Honda K20a

Starter Trigger Factory Honda K20a

Coils Factory Honda K-series (Smart Coils)

Ground Ring Terminals for Coils and ECU Factory Honda

Knock Sensor (KS) Factory Honda K20a

Alternator Factory Honda K20a

Injectors (8 Injector) EV1,EV14,Nippon, and others. We recommend Injector Dynamics ID 1050X or/ and ID 2000cc

  • Infinity 506 - Up to 6 Low or High Impedance Injectors
  • Infinity 508 - Up to 8 High Impedance Injectors only

Boost Solenoid (MAC solenoid) Rywire (Rywire 3 port or 4 port kit)

Rear speed expansion Rywire (Rywire rear speed kits for MAG or Hall sensors)

FLEX FUEL capable Rywire (Rywire flex fuel kit )

AUX expansion Engine side (Contains power, 12V, 5V, sen ground, and 1 AV input,1 digital input, and 1 low side input)
AUX expansion ECU side (Contains 5V, sen ground, and 1 AV input)

Trigger (CAM/CRANK) Factory Honda K20a

CAN BUS connectivity
AEM NET (connects devices such as loggers, dashes, and gauges)

Chassis adapter options

This harness can plug and play into any chassis, but we recommend our Rywire standalone RACE fuse box http://www.rywire.com/product-p/b-sub-race.htm

This fuse box allows for a quick and easy install into any chassis, off road car, sand rail, buggy, gutted circuit or drag race car.

This harness with the RACE fuse/relay box can also be plug and play with our SWITCH PANEL

The engine harness, fuse/relay box, and switch panel are all PLUG AND PLAY making your life much easier!
