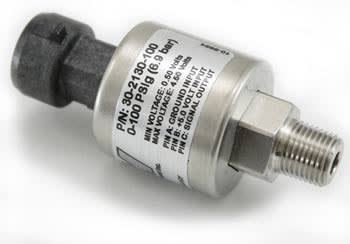

AEM 100 PSIg Stainless Steel Sensor Kit
AEM 100 PSIg Stainless Steel Sensor Kit



Alternative Views:


PRICE: $177.00


ID: AEM-30-2130-100

Description


100 PSIg Stainless Steel Sensor Kit. Stainless Steel Sensor Body. 1/8" NPT Male Thread.

Includes: 100PSIg Stainless Steel Sensor, 12" Flying Lead Connector & 1/8" NPT to -4 Adapter.

All AEM Sensors include a flying lead with a weather-tight seal and 12 inch insulated wires that are color coded in black, green and red! This is important since the correct connector will give you the most accurate voltage possible.

Sensor Performance Specifications:

Accuracy: +/- 0.5% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity

Operating Temp: -40C to 105C / -40F to 221F

Burst Pressure: 1000PSI

Response Time: < 1mS

Wetted Materials: 304L & 316L Stainless Steel

Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes

Weight: <85g

Supply Current: <6mA at 5 Vdc

Output: .5 to 4.5Vdc Linear

Transfer Function: PSI = (25*(Voltage))-12.5

Elec. Termination: Integral weatherproof connector, includes mating connector with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 Green (Output)

30-2130-100 Sensor Data MORE STATS
